SDI vs. BNC Connector

1. Decoding the Jargon

Ever stared at the back of a video device and felt a sudden urge to just...walk away? All those ports and connectors can be overwhelming! One common source of head-scratching is the difference between SDI and BNC connectors. Are they the same thing? Do they speak different languages? Well, let's demystify this cable conundrum and get you feeling confident about your video connections. Trust me, it's not as scary as it looks!

Think of it this way: a BNC connector is like a specific type of electrical outlet. It's a physical connector, a metal interface designed to securely attach a cable to a device. SDI, on the other hand, is like the type of electricity flowing through that outlet. It stands for Serial Digital Interface and refers to a standard for transmitting digital video signals. So, while you'll often see an SDI signal traveling through a BNC connector, they're not interchangeable concepts. The BNC is the messenger, SDI is the message. Got it? Good!

This is actually important when it comes to troubleshooting. If you have a problem with your video signal, it could be the BNC connector itself (loose connection, damage), the SDI signal being transmitted, or the cable that carries the signal. Understanding the difference helps you narrow down the potential culprit and avoid unnecessary panic — and costly replacements.

Imagine trying to stream a high-definition movie through an old dial-up modem. The modem (the connector, in our analogy) might be working fine, but it simply doesn't have the bandwidth to handle the high-definition signal (the SDI). Similarly, a perfectly good BNC connector won't magically transform a blurry, low-resolution signal into crystal-clear 4K. It's all about understanding the roles of each element in the chain.

What Are SMA & RPSMA Connectors And What's The Difference? LinITX Blog

BNC Connectors

2. Getting Hands-On with BNC

Lets delve into BNC connectors a bit more. BNC stands for Bayonet Neill-Concelman (named after its inventors, naturally!). The 'bayonet' part refers to the locking mechanism, that twist-and-click action that secures the connection. This is one of the reasons BNC connectors are so popular in professional video environments — they're less likely to accidentally disconnect than, say, an RCA connector.

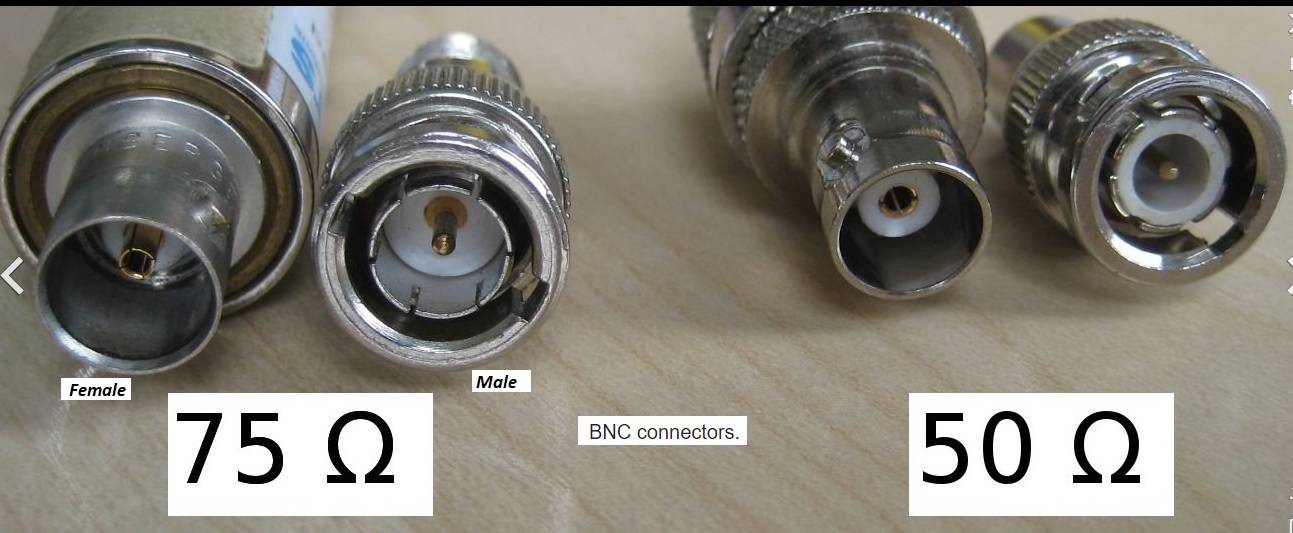

BNC connectors come in various impedance ratings, typically 50 ohm or 75 ohm. Impedance, in simple terms, is the resistance to the flow of electrical current. In video applications, you almost always want to use 75 ohm connectors and cables. Mismatching impedances can lead to signal reflections and degradation, which translates to a poor-quality picture. Always check the specifications of your equipment to ensure you're using the correct impedance. Using the wrong one is like trying to fit a square peg in a round hole — it might technically work, but it won't work well!

You'll find BNC connectors on a wide range of video equipment, from cameras and monitors to switchers and routers. They're a reliable and robust solution for transmitting video signals, especially over relatively short distances. While newer technologies like HDMI and DisplayPort are becoming increasingly common, BNC connectors still hold their own in professional broadcast and production environments.

Think of BNC connectors as the trusty workhorses of the video world. They might not be the flashiest connectors on the block, but they're dependable and get the job done. Learning to properly connect and disconnect BNC connectors is a fundamental skill for anyone working with video equipment.

Multimedia Howto ASI, SDI, RF, FType, BNC Connector

SDI

3. Understanding the Signal

Now, let's shine a spotlight on SDI, the digital video standard itself. SDI is a way of transmitting uncompressed, unencrypted digital video signals. What does that mean in plain English? It means you're getting a pristine, high-quality video signal without any loss of detail or compression artifacts. That's why SDI is favored in professional video production where image quality is paramount.

There are different flavors of SDI, each with its own bandwidth and capabilities. Standard Definition SDI (SD-SDI) can handle standard-definition video signals. High Definition SDI (HD-SDI) steps up to high-definition. Then there's 3G-SDI, which can handle 1080p video at higher frame rates and 6G-SDI, 12G-SDI, and beyond, which are designed for 4K and even 8K video. The higher the number, the more bandwidth the standard can handle.

One of the key advantages of SDI is its ability to transmit video signals over relatively long distances without significant signal degradation. While the maximum distance depends on the cable quality and the specific SDI standard, you can typically run SDI cables much farther than HDMI cables before encountering problems. This makes SDI a good choice for situations where you need to connect devices that are located far apart.

While SDI offers excellent image quality and range, it's not without its drawbacks. SDI cables can be more expensive than other types of cables, and SDI equipment tends to be pricier as well. Also, SDI doesn't carry audio signals natively, so you'll need a separate audio connection if you're transmitting audio along with your video. But if you need the best possible video quality and reliability, SDI is often the way to go.

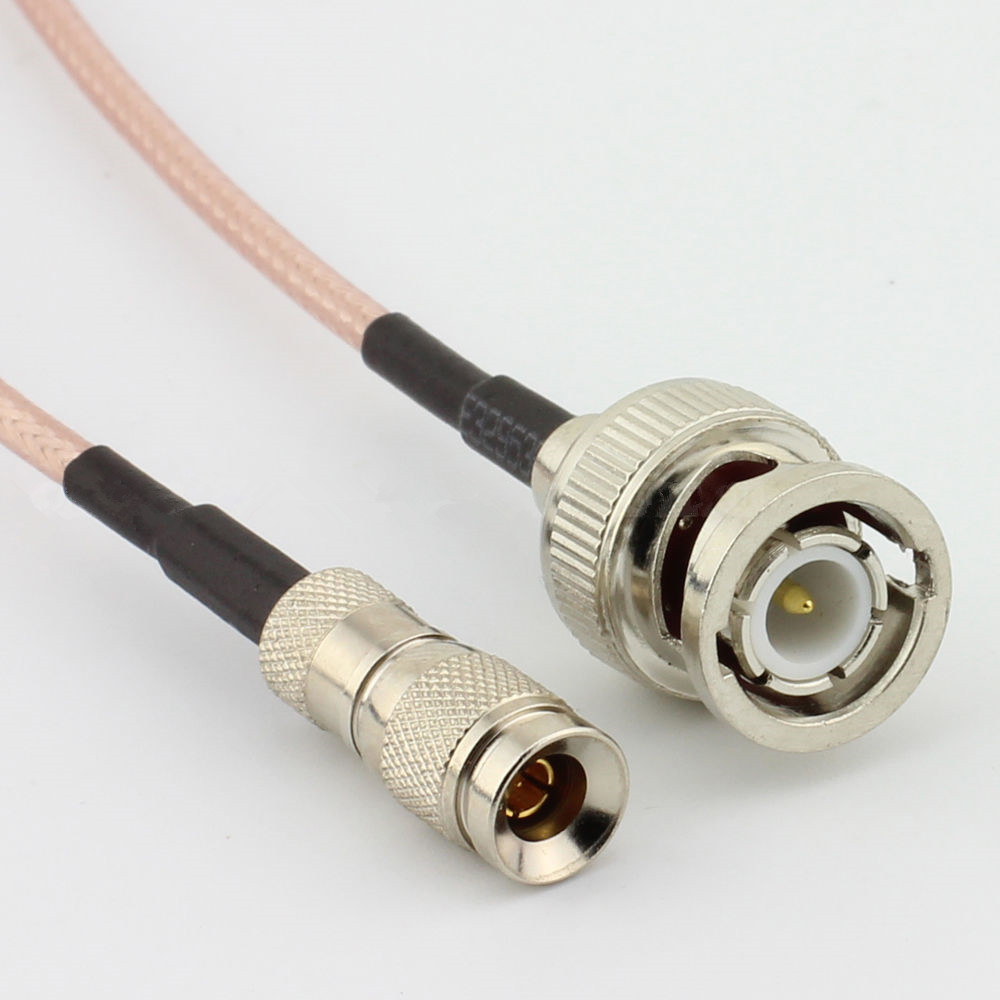

DIN 1.0/2.3 Mini BNC To Male HD SDI 75ohm Cable Blackmagic

Why Knowing the Difference Matters

4. Real-World Applications

So, why should you care about the difference between SDI and BNC connectors? Well, imagine you're setting up a multi-camera live streaming rig. You need to connect your cameras to a video switcher, and the switcher has BNC inputs. Knowing that you need SDI cables with BNC connectors at each end is crucial for getting everything connected correctly. You'll also need to make sure that the cables are the correct impedance (75 ohm) and that they're capable of handling the resolution and frame rate of your cameras.

Or, let's say you're troubleshooting a video problem. You're getting a blurry or distorted image on your monitor. By understanding the roles of SDI and BNC connectors, you can systematically check each component of the signal chain to identify the source of the problem. Is the BNC connector loose or damaged? Is the SDI signal being transmitted correctly? Is the cable faulty? By asking these questions, you can quickly pinpoint the issue and get your video system back up and running.

Consider another scenario: You're upgrading your video equipment to support 4K resolution. You'll need to make sure that your SDI cables and connectors are capable of handling the higher bandwidth of 4K video. This means using cables that are rated for 6G-SDI or 12G-SDI. Using older cables that are only rated for HD-SDI will result in a degraded image or no signal at all.

In short, understanding the difference between SDI and BNC connectors empowers you to make informed decisions about your video equipment, troubleshoot problems effectively, and ensure that you're getting the best possible video quality. It's a small piece of knowledge that can make a big difference in your video workflow. It helps avoid costly mistakes and wasted time.

XRDS RF SDI Connector 2PCS 75 Ohm BNC Adapter Female To

Troubleshooting Common Issues

5. Fixing Signal Problems

Let's talk about some common problems you might encounter with SDI and BNC connections, and how to fix them. One frequent issue is a weak or intermittent signal. This can be caused by a loose BNC connector. Make sure that the connector is fully seated and locked into place. If the connector is damaged, you may need to replace it.

Another common problem is signal degradation, which can manifest as a blurry or distorted image. This can be caused by using a cable that's too long or of poor quality. Try using a shorter cable or a higher-quality cable. Also, make sure that the impedance of the cable matches the impedance of your equipment (75 ohm). Mismatched impedances can cause signal reflections and degradation.

Sometimes, you might encounter a complete loss of signal. This can be caused by a faulty cable or a problem with the SDI signal itself. Try using a different cable to rule out a cable problem. If the problem persists, check the output settings on your video source to make sure that it's transmitting an SDI signal.

Don't overlook the obvious! Make sure your devices are powered on! Also, double-check that the cable isn't damaged. BNC cables can be fragile, and excessive bending or twisting can damage the internal conductors. Visually inspect the cable for any signs of damage, such as cuts or kinks. If you suspect that a cable is damaged, replace it with a new one. A small investment in new, quality cables can save you a lot of headaches down the road. Sometimes the simplest solutions are the best.

BNC Vs SDI A Comprehensive Comparison To Determine What Sets Them

FAQ

6. Your Questions Answered

Still have questions? Here are some frequently asked questions to help clarify the differences between SDI and BNC connectors:

Q: Can I use any BNC cable for SDI?
A: Not necessarily. You need to use a 75 ohm BNC cable specifically designed for SDI signals. Using a 50 ohm cable or a low-quality cable can result in signal degradation or a complete loss of signal.

Q: What's the maximum distance I can run an SDI cable?
A: The maximum distance depends on the cable quality and the SDI standard. Typically, you can run HD-SDI up to 300 feet, 3G-SDI up to 200 feet, and 6G-SDI/12G-SDI up to 100 feet. Using a higher-quality cable can extend these distances.

Q: Do I need special tools to connect BNC connectors?
A: For pre-made BNC cables, you don't need any special tools. Just twist and lock the connector into place. However, if you're making your own BNC cables, you'll need a crimping tool to attach the connector to the cable.

Q: Can I convert SDI to HDMI?
A: Yes, you can use an SDI to HDMI converter to convert an SDI signal to an HDMI signal. This is useful for connecting SDI devices to HDMI monitors or projectors.
