Unraveling the Mystery

1. What's the Buzz Around 480V?

So, you're diving into the electrifying world of, well, electricity! And you've stumbled upon the term "480V." The burning question is: Is 480V AC or DC? Let's put on our electrical engineer hats (don't worry, they're metaphorical) and find out. This isn't just about knowing the answer; it's about understanding what that answer means in practical terms. After all, electricity isn't just about volts and amps; it's about powering our lives, from our smartphones to entire factories.

Think of it like this: imagining you are at a big power plant, you see the huge lines going all over the place and some of the techies are talking, 480V this, 480V that. This is your chance to shine and actually understand what they are saying, you will be so cool! That's why we are diving so deep into this stuff, lets begin.

First things first, both AC (Alternating Current) and DC (Direct Current) voltages can exist at various levels. You might have a 1.5V battery (DC) powering your remote control, or a 120V outlet (AC) charging your laptop. The voltage level itself doesn't automatically define whether it's AC or DC. So, seeing "480V" written down alone isn't enough to solve our puzzle.

However, 480V is most commonly associated with AC power. It's a standard voltage used in many commercial and industrial settings. Think large machinery, factories, and bigger commercial buildings. DC at 480V can exist, but it's far less common and usually involves specific applications like certain types of industrial equipment or renewable energy systems.

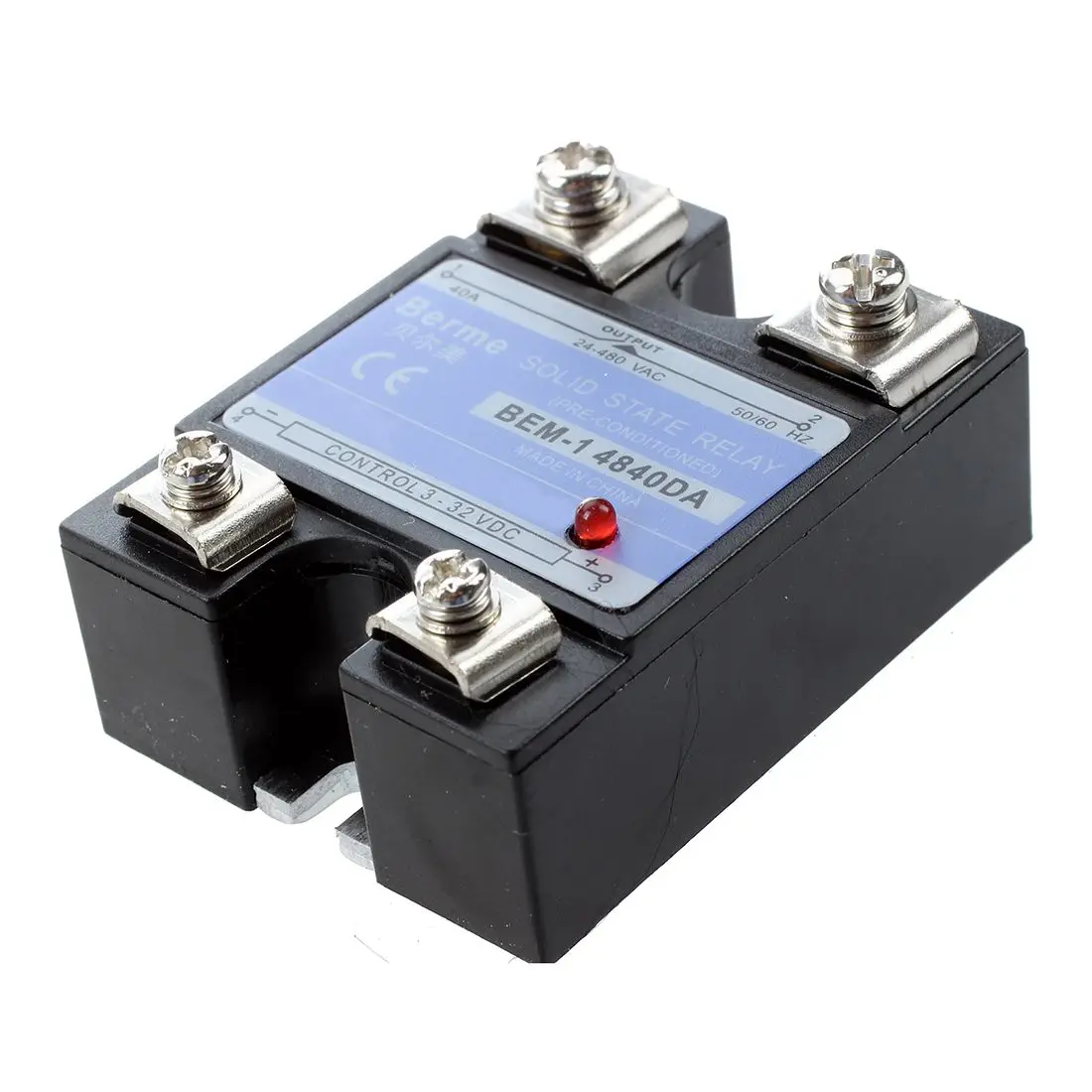

24 480V AC DC To 3 32VDC Output Single Phase SSR Solid State Relay 40A

AC vs. DC

2. Understanding the Core Difference

Alright, before we move on, let's quickly recap the difference between AC and DC. It's more than just the letters. Think of it like this: DC is like a one-way street for electrons, flowing steadily in a single direction. AC, on the other hand, is more like a roundabout, with electrons constantly changing direction. This change in direction is what gives AC its "alternating" nature.

To put it simply: Direct Current (DC) flows in one direction, while Alternating Current (AC) changes direction periodically. Imagine a river flowing steadily downstream (DC) versus a wave crashing back and forth on the shore (AC). Both involve water, but their movement is fundamentally different.

The frequency of AC, measured in Hertz (Hz), tells us how many times the current changes direction per second. In the United States, the standard frequency is 60 Hz, meaning the current changes direction 60 times every second. In Europe and other parts of the world, 50 Hz is more common.

Knowing this difference is crucial because different devices and systems are designed to operate on either AC or DC power. Plugging a DC device into an AC outlet (or vice versa) can lead to all sorts of problems, from malfunction to outright destruction (and potentially a small firework show, but let's avoid that).

480V 3 Phase US Industrial Power Automation Ready Panels

Why 480V AC is the Typical Suspect

3. Industrial Strength Power

So, why is 480V AC so popular in commercial and industrial environments? The answer lies in efficiency and power distribution. AC power can be easily stepped up or down using transformers. This is incredibly useful for long-distance transmission, where higher voltages minimize energy loss due to resistance. 480V AC hits a sweet spot for powering large equipment without requiring excessively thick and expensive wiring.

Think about it: a massive factory needs a lot of power. Stepping down the voltage to something like 120V for every single machine would require an insane amount of copper wiring — which is expensive, heavy, and impractical. 480V allows for more efficient distribution, saving money and resources. Also, larger equipment tends to be built to take advantage of the higher voltage in order to reduce current and the heat associated with current moving through wires.

Imagine trying to supply your entire neighborhood with power using only small extension cords. It wouldn't work, right? The same principle applies to industrial settings. 480V AC is like a thicker, more robust extension cord designed for heavy-duty power needs.

Furthermore, many large motors, pumps, and HVAC systems are designed to run directly on 480V AC. This simplifies the electrical system and reduces the need for multiple voltage conversions. In the industrial world, efficiency and reliability are paramount, and 480V AC provides a cost-effective solution.

[Solved] A 480V Three Phase Branch Circuit Has Two Motors Connected To

When Might You See 480V DC? A Few Edge Cases

4. Rare, But It Exists!

While 480V is predominantly AC, there are situations where you might encounter 480V DC. These are typically specialized applications where DC power offers specific advantages. These situations are rare, but worth considering. Knowing when 480v DC might be present is like having secret knowledge!

One example is in some types of large-scale battery storage systems. As renewable energy sources like solar and wind become more prevalent, the need for energy storage increases. Large battery banks might operate at 480V DC to efficiently store and discharge power. This high voltage DC may also be used in applications where the conversion from AC to DC is costly and adds complexity to the operation.

Another application is certain types of industrial drives and motor control systems. In some cases, DC motors offer better speed and torque control than AC motors, making them suitable for precision applications. These systems might use 480V DC to power the motors directly. Typically, you will see applications using servo motors where precision is key.

However, even in these cases, it's important to remember that 480V DC is the exception, not the rule. If you're working with a system labeled "480V," always assume it's AC unless you have explicit documentation stating otherwise. And, of course, always follow proper safety procedures when working with any voltage, AC or DC!

Daftar Singkat Standar Warna Kabel Listrik Tiap Negara Wira

So, is 480V AC or DC? The Answer... and a Safety Reminder!

5. It's (Probably) AC! But Be Careful!

Okay, let's wrap this up. In the vast majority of cases, when you encounter the term "480V," it refers to 480V AC. This is the standard voltage for many industrial and commercial power distribution systems. It's efficient, readily available, and well-suited for powering large equipment.

However, it's crucial to remember that context matters. If you're working with a specific piece of equipment or system, always consult the documentation to confirm the voltage type. Never assume! Misunderstanding whether you are working with AC or DC can be dangerous.

And speaking of danger, let's not forget the golden rule of electricity: safety first! 480V, whether AC or DC, is a potentially lethal voltage. Always follow proper lockout/tagout procedures, use appropriate personal protective equipment (PPE), and consult with qualified electricians when working with high-voltage systems.

Treat all electrical equipment with respect, and never take shortcuts. A little knowledge and a lot of caution can go a long way in keeping you safe and sound! And that's the key to mastering the world of 480V — understanding, awareness, and a healthy dose of respect for the power of electricity.

Sprint SLX15 36A 4Q 200V To 480V 3ph AC DC Converter Drives

FAQ

6. Everything You Wanted to Know (But Were Afraid to Ask)

Q: Is 480V single-phase or three-phase?
A: It can be either! However, 480V is most commonly three-phase. Three-phase power is more efficient for large industrial loads. Single-phase 480V does exist, but it's less common. When in doubt, check the equipment labeling!

Q: Can I use a regular 120V outlet on a 480V system?
A: Absolutely not! This is a recipe for disaster. You'll need a step-down transformer to convert the 480V to 120V before plugging in any standard 120V devices. Seriously, don't try this at home (or anywhere else, for that matter).

Q: What kind of equipment uses 480V?
A: A wide range of heavy-duty equipment, including large motors, pumps, HVAC systems, industrial machinery, and some lighting systems. Basically, anything that requires a significant amount of power often runs on 480V.

Q: What are common safety precautions when working with 480V?
A: Lockout/tagout procedures, proper PPE (insulated gloves, safety glasses, etc.), and a thorough understanding of the electrical system are essential. If you're not a qualified electrician, don't touch it! Hire a professional.
